Object-Oriented Design
Lecture notes, September 2000
Modified September 22
Jeffrey Nickerson
By Section:
Introduction
Systems
Objects
Object-Oriented Languages
For more on diagrams, read about their conventions
An OO metrics bibliography
One of the early articulators of Systems Theory was Bertalanffy, and this book
General Systems Theory is an interesting read, with a good description of how the field
was created.
Systems Theory originated around the same time as Game Theory, Information Theory, Cybernetics, Decision Theory,
and Queuing Theory.
For the forecasting of the future is perhaps the basic business of theoretical science; in science
it is called prediction. The vehicle for prediction must, to one degree or another, comprise a model for the system
under consideration - Rosen, (1985), p 6
an organism, a beehive, an ecosystem also automobiles, cities - all natural systems. We use the adjective "natural"
to distinguish these systems from the formal systems which we create to represent and model them; formal systems
are the vehicles for drawing inferences from premises, and belong to mathematics rather than science. - Rosen (1985)
p 45
Our fundamental awareness of sensory impressions = precepts.
We associate the precepts with qualities or properties of the system we are regarding.
we assume we don't make them up, so there is an external world. Then a natural system is part of the external world
So this system will generate precepts in us, which we will associate with properties of the system
itself.
Precepts are the fundamental units of experience,...
observables are the fundamental units of natural systems - Rosen
(1985) 47
A quality corresponds to an observable
a quantity corresponds to a specific value of an observable. p 49
So for a system, we need to consider how observables are linked as simultaneous events.
How they are related through successor-predecessor relations.
We can call these relationships linkages
We can't know for sure that what we observe are really linked in the way we think - the system itself
doesn't usually tell us "we order food before it appears on the table" So what we really do is build
a model, from which we make predictions about what will happen. We create an abstracted system, from which we can
make inferences - food ordering before delivery.We call this a formal system, and it is built with mathematical
objects.
Every design is the expression of a possible future state .. that affects the current state .. through constitution
of perceived and acknowledged needs, expectations, and desires. - Nadin
The synthesis of form is the crucial step of design. It is when alternative forms are generated. Later, the forms are paired down, analyzed in more depth, and finally one or a couple are chosen for implementation. Experienced good designers can generate more alternatives, and quickly assess them against a number of criteria, including cost.
Every design is the expression of a possible future state.. - M. Nadin
Lecture One: Systems, Modeling, Sequences
Introduction
Aristotle found four causes for everything. The fourth one he describes as the final cause - in essence, the purpose.
Design is the process of creating things that serve a purpose. We work from the future backwards. Our method is one of generation, refinement, and problem solving, but really we are preparing ourselves for insight.
This search for insight, the design activity, is essentially the same in different domains - designers of houses,
cities, bridges, carpets, toys, and applications share similar traits and independently have converged on certain
ways of working.
So long after you have forgotten the syntax of catch and throw in Java, you will still be using the
design skills we are focusing on - maybe to design software, maybe for something else.
For the next few weeks, I suggest you analyze everything - that you model every bookstore, coffee shop, and gas
station you enter. Every elevator bank, every meeting, every purchase. With the goal, the purpose, of working design
skills into your system.
The short summary of objects
We pretend the world is made up of objects. These objects have qualities associated with them. These qualities have values that change - when any one changes, the overall state of an object changes.
Objects are changed by other objects. The change is triggered by a message. In the crudest form, messages are physical - when you turn on a stereo, you are transmitting a clear message. Objects such as the stereo know how to respond to certain messages - the response may include sending messages to other objects. I
It is the receiving of the message we focus on, not the sending. Why? Because it makes things simpler.
You will find the object model works better for some problems than for others.
The short summary of diagrams
For our purposes, we are concerned with only a few conventions.
First, nodes represent objects. Lines represent either messages or associations.
Enclosure represents some form of structural containment.
And finally, in most cases distances between things don't really matter. With one important exception - When lines
represent messages we care about the sequences of messages. When we draw sequence diagrams, we use the Y axis to
reflect time ordering.
When lines represent messages, we are creating a dynamic model - when associations, a static model. Space and time.
Architects do the same thing - they will use a floorplan to show structure, but will think through the sequence
of rooms a person will walk through under different scenarios.
Coding
Writing software is hard, mainly because the way systems operate complex interactions that are hard to fully capture. The more you look, the more you pick up another exception that must be handled.
For any problem, there is theoretically a program which is the smallest program that could possibly generate the
required set of results. From my experience, it is rare that the program built is as small as it could be. But
more importantly, the smallest program is much, much larger than we normally estimate. We are good at glossing
over details and forming general rules. Machines are not.
If you are serious about software design, you need to understand metrics - such as the statistic that the average
programmer codes 8,000 lines of usable code a year. That software can be estimated at the requirements stage.
The short summary of design
generating scenarios to get real data
Thinking through actual situations, and in detail figuring out what happened, will provide much better information than listing a set of desired featurs.
asking big questions
There is a purpose behind a project - understanding it is important to the next step.
generating alternatives before the censor closes in
Especially in a group activity, you need to create an environment in which ideas can be generated without immediately being evaluated. The censor is you.
An example - a doorbell
Problem - to design a new kind of doorbell.
In-class exercise
Two different groups:
A) Design a travelers alarm clock. Design at least 3 variations, including analog and digital faces. What are the
implications to the state diagram? What are the performance implications?
B) Design a shower. What are the implications if the same person will be using the shower every day? A family? Design at least 3 variations with radically different interfaces. What are the attributes? The states?
Systems
Systems have an incredibly vague definition, yet we understand what they are. Rosen (Life Itself, p42) describes it this way:
These things that belong together, and whatever else depends on them alone, are segregated into a single bag called system; whatever lies outside, like the complement of a set, constitutes environment.
So the thing to be clear on is that systems are both living things and mechanical things, large complicated things and very simple things. They can usually best be thought of as a collection of interacting parts. An animal. A cell. And also things more amorphous. A weather system. A society. And the mechanical things we use. A car. An engine system. A computer system.
Rosen was a biologist. The reason we are going to follow some of his arguments is that he seems to have thought
as hard as anybody about this problem of modeling a system. Biology presents great mysteries that seem to escape
normal ways of modeling, and much of Rosen's work leads to some strong conclusions on what constitutes life. We
will not follow his argument that far, but we will make use of the distinctions he makes about models.
Analysis
Rosen makes the strong distinction between natural systems and formal systems. Real systems in the external world are natural systems. So even mechanical things are natural systems. Mathematical constructs are formal systems. We sometimes operate on formal systems in the hopes of predicting what the natural system will do. So here is a diagram illustrating Rosen's idea:
In the real world, we have physical causes. In the formal world, we have logical inferences. So we might build
a model of the weather, and have a rule that says that "where lightening, thunder" and use it to predict
the sound of thunder lagging our perception of lightening.
Now what if we build a weather simulation program? Is that a natural system or a formal system? If we build it,
it is in the external world. So it is a natural system. The process of working from a model to a system in the
world Rosen refers to as realization.

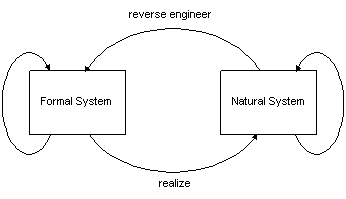

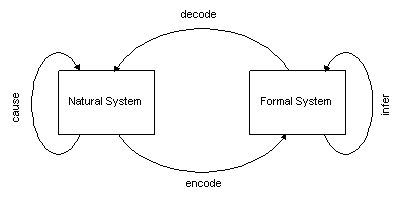

The diagram looks the same - we have flipped Formal and Natural, and changed the labels on the arrows:

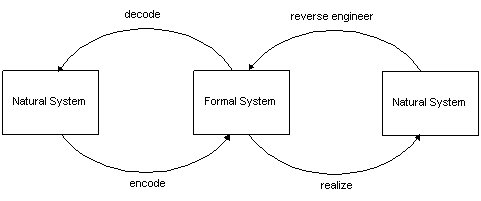

We can tie these diagrams together. Now let's take an example - we are a desert island, and an airplane comes down
and lands. We extrapolate a model of aerodynamics from the plane. We look at our model, and realize it doesn't
have anything to do with pure size - that all measurements are relative, so we synthesize, we build, we realize
a much smaller airplane. Now this is done all the time for wind-tunnel tests. We call those things model airplanes.
In our way of talking, we would say the small plane is the realization of a model - and the small plane works to
predict the performance of the large plane because it is an analog of the other.
In the software world, we have the phenomenon of the clean-room implementations. In order to avoid copyright violations,
a company will hire a consultant to observe the behavior of a hardware or software system, and compile a detailed
specification. That consultant's contract is then terminated. The specification, the formal model, is then turned
over to another set of engineers whose job it is to meet the specification. They have had no exposure to the original
project, and cannot be sued for violations of copyright or trademark infringement. The Java Virtual Machine Specification
even has the words in it that the document can be used for clean-room implementations.
There are a couple of things going on here that deserve attention. The first is that we are saying that the two
things on either side of the model, the formal specification, are not the same, yet they behave the same. They
behave the same only in the ways we are measuring. In a black-box environment, we are measuring output from a system
a property at a time. We probably don't pay attention to all properties. We have built a model that abstracts those
things we notice and measure. Rosen calls these things observables.
The second thing is that the synthesis step is somewhat mysterious. How do we come up with the system that is 1/6
scale? How did we decide that was better than 1/3 scale or 1/12 scale?
Design
Synthesis of form is usually taught to architects and engineers in the following way. They are given a design problem, and asked to generate several alternative solutions on paper. They are critiqued, and eventually asked to build something. In an architecture class, they may only be asked to build a scale model.
In this class you will be asked to build a program. After you have learned to design.
Part of the reason to create a model is that the model is usually easier to manipulate than the system it emulates. So a drawing of a house is easier to change than a house. A sketch of an object model is easier to change than 100,000 lines of software code. Designers get good at manipulating models and coming up with alternative ones.
In the software world there are often phases of modeling, so that the overall process looks like this:
Theories come and go, the frog stays - Francois Jacob, cited in Nadin.
Omitted from the lecture.
Dahl, Myhrhaug, and Nygaard invented Simula in 1967
So the creation of a new piece of software may start with the analysis of a manual process, resulting in a model of the way things are currently done. Now we are in the world of formal models, and we manipulate the model, adding, deleting, substituting, until we have generated a few alternative more desirable models, the To Be models. We pick one of these models, which are still very much at the business level, and then generate a number of alternatives for implementing the model. We pick one of these designs, and build the piece of software.
Errors
Computer systems often mess up. We usually call the problems bugs. These are differences between the model we have in our mind of the way the system should work and the realization. Now the question is where did something go wrong. And it can be anywhere in the diagram. Sometimes what we expected never got put down on paper. Or what we wanted was in conflict with another requirement. Or the implementation does not meet the specification. When an operating system crashes, we know that the implementation is not meeting the spec. And in the case of operating systems it is the shear size of the implementation that prevents all the differences from being removed.
Problems discovered later are much more expensive to fix. But problems in a model take more imagination to see than problems in a malfunctioning program.
Abstraction
An observation procedure applied to a natural system, generates an abstraction. You are measuring one thing - other qualities are ignored.
Subsystem
A subsystem is a part of a natural system which a small set of observation procedures let us see.
So a model is always a subsystem of the corresponding natural system - there is usually something we are not measuring.
"The extraction and characterization of subsystems in terms of individual observables, and the employment of such characterizations to encode particular interactions, is the essence of system analysis." Rosen, (1985) 216
Rosen observes that we assume systems can be broken up into non-overlapping subsystems. He claims that this doesn't
work when considering living things. We can talk about the pulmonary and circulatory system in the body, but they
overlap.
OO languages
The first OO language came from a set of Norwegians who wanted to build a simulation language. The language, they thought, would help us understand the world better. It was named Simula. And it was really used initially to try to simulate societal types of issues. Queuing theory was a big influence on the language - so the language was good at doing things like mimicking the wait at a bank for the next teller.
Almost all the good object ideas go back to 1967. Smalltalk added a very important idea - that a graphic user interface is made up of sets of objects. We send messages to these objects by manipulating them with a mouse and a keyboard. C++ drew on Simula, and Java combined ideas from all the previous OO languages.
UML text: Peter Coad et al, Java Design, 2nd Edition, Yourdon Press, 1999
Different types of UML diagrams: Sequence, Class, State, Activity, Collaboration, Use Case, Object, Package, Component, Deployment
Here is a good UML reference sheet
Scott Ambler's article on UML modeling of architecture is worth reading.
Here is the Rational UML Quickreference - it is worth printing.
And a UML primer
Other recommended texts are those by Rumbaugh, Booch, and Jacobson, who are responsible for UML, as well as all texts by Coad.
Visualizing Object Designs
Even though OO started in the 60s, it wasn't until the late 80s that standard ways of visualizing objects began appearing. But, to be fair, some other techniques, such as Entity-Relationship Modeling , are very close in concept to object modeling. In some ways, OO modeling is a co-opting of a variety of analytic diagrams that go way back. For more on visualization, see this chapter of my thesis.
The Unified Modeling Language (UML)
UML is a standard modeling convention, created to stop industry bickering and create a larger market for Computer-Aided Software Engineering tools based on Object-Oriented techniques. The current set of conventions in UML come from a number of different sources. There are at least 9 different diagram conventions that are part of the modeling language. And there are case tools such as Rational Rose that will allow you to create diagrams, move from diagrams to code, and then reverse-engineer back to diagrams.
For the purpose of this course, UML is a tool - I am not going to teach every aspect of the different diagrams. I don't think all of them are useful. I do want you to be facile with the few diagram conventions I present here. By the way, the Coad book takes a similar approach, only using a subset of UML conventions.
Sequence Diagrams
In my mind, this is the most useful software diagram, period.
Across the top we have objects. Between them we show messages.
The extent of an objects control is shown by the vertical rectangle.

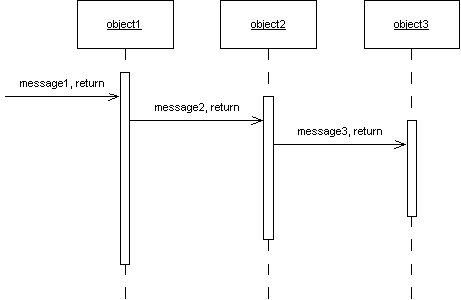

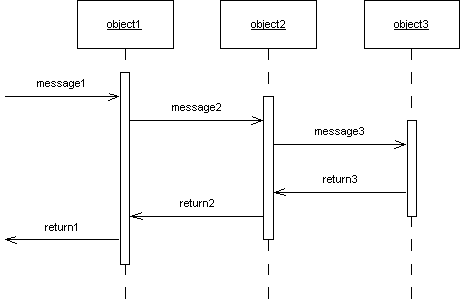

There are two alternative conventions for showing returning messages - show them explicitly, or make them implicit in the way the message is passed back and forth.
You can see the two diagrams above are equivalent. Coad uses the later convention, in the following way:
The method name passes two parameters, the input and the output. In this case, an interface object is passing a name to a lookup object that will return a corresponding phone number.
Now, I want to be clear that these diagrams work even at the level of business analysis. Here we look at an online

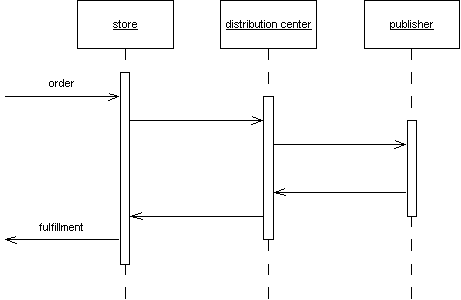

bookstore - an order comes in for a book that in this case is not present in the distribution center, so the publisher
is contacted. The total time for the transaction is high for the customer. But the store doesn't need to keep any
inventory.
In the following diagram, the distribution center anticipates a customer order, and fills up on stock. The store
anticipates the customer order. The customer gets a quick transaction, but the bookstore has to hold inventory.
Sequence diagrams apply at any level of systems - the things in the top boxes can be people or large software systems,
or they can be 10 line Java-coded objects.
Class Diagrams
For those of you who have been involved in database design, class diagrams will be very familiar. They look almost identical to entity-relationship diagrams. The major difference is that not only data attributes, but also operations are shown. This diagram is based on the one in Coad on page 25 - but I have added two classes, PlaneModel and Seat.
patterns
Notice that there is a relationship between sequence diagrams and class diagrams. Every arrow on sequence diagram that points toward an object is reflected as an operation of that object on this diagram. Notice that the associations, however, have nothing to do with the sequence diagram - just because an object calls another object doesn't mean there is a structural association between the two. Think of time and space, with the class diagram representing static relationships that define the structure of the domain.
From the right level of class diagram, it is possible to generate code stubs. The CD in the back of the Java Design book contains a CASE program that will allow you to create a class diagram, and from it, generate Java. It will even work the other direction. The crucial decision the case tool will make is how to encode the association links of the diagram. For this it will work off the cardinality information that you can provide it.
The way to keep cardinality straight is to think it through in two steps, from the perspective of each object.
"If I am a reservation, how many seats do I associate with" which we have answered with a 1. "If I am a seat, how many reservations do I have associated with me" - which we have answered with a zero or 1. Now notice that we have an assumption here - we are somehow going to have to generate a new seat object for each scheduled flight.
So probably in the addScheduledFlight method, we would go to the PlaneModel object, and create a new seat according
the floorplan of, say, the Boeing 747. Then part of implementation will involve traversing this set of seats to
figure out which seats are reserved and which passengers have checked in. Our interface ought to show a map to
an agent who is trying to decide where to put passengers.
There is another unusual feature of this diagram - the diamond shape shows aggregation, which can be read "part of". The seats are part of the flight. If the flight is canceled, the seats disappear.
By the way, the huge association usually discussed in object-oriented design is inheritance, which is a "kind
of" relationship. You need to understand it, as a lot of the Java libraries are based on it. But in actual
analysis it is not always that useful, and in coding it can quickly become very complicated.
The treatment of inheritance and its alternatives in Coad, chapter 2, is very good. In particular, it is useful to understand than the inheritance tree of a Java applet goes like this:
Applet -> Panel -> Container -> Component -> Object.
So when we create an applet, we can inherit from applet, which already has a large set of pre-defined methods. We don't have to bother to write special methods for resizing the window, unless there is something out of the ordinary we want to do.
Design Issues
When do you go from analysis to design? When you stop being concerned with the present situation and start to motivate yourself for action. But the boundary is not so clear - your analysis has a motivation, which is usually to understand a present state so your future state will fulfill the implicit requirements of the current environment.
A typical user requirement: "I want it to do everything it does now, but these additional thing, and a lot faster, without any of the current drawbacks, and I want the new system to be inexpensive, delivered soon, and be flawless".
There is an economics of design. The above requirement overconstrains the problem - there will be no solution.
You can either decide not to build it, or pick which requirements to ignore.
Patterns
The point of studying systems is that what you learn on one system seems to apply by analogy to another system. So a good designer recognizes patterns, and focuses straight in on the pivotal issue of a problem
Many attempts are being made to catalog patterns used in software design. Most efforts are not very useful - I would categorize them as attempts to make archetypal overly clever constructs. The exception is Coad - his books do analyze situations that continue to recur in business systems.
Patterns only go so far - software design is interesting because you can create something new. And that newness is usually the result of practice in manipulating models in your mind.
Restaurant Problem - in class assignment
Model a restaurant from the perspective of
1)
a waiter and
2)
a cook.
Assignment for next lecture
Model a reservation system for a restaurant. Include at least 3 sequence diagrams, one state diagram for the most interesting object, and a class diagram, detailing both the attributes, operations, and associations.
Explain how the problem is different than that for an airplane reservation system. Could you build a system that would handle both?
Lecture 2 - Associations
Last time we talked about Systems, and described a model as being a formal system that allows us to make predictions
about a natural system - and also allows us to synthesize a new natural system that shares certain characteristics
with the original system, as when we analyze a manual process, create a model, and then create a working computer
system that realizes the model.
We also introduced the idea of sequence diagrams as a way to gain insight into a system. We began working with
class diagrams, and briefly introduced the concept of state.
This time we will go deeper into the concept of state. We will make sure the concept of an object is understood.
Then we will look at associations in more depth, in particular aggregation and type_of.
We will look at the airline example, and loop back to our restaurant example.
An outline:
Review
States
Machines
Objects again
Attributes as dimensions
Class and realization
Associations
And signs - iconic, symbolic, indexical
Clues - needing to know what you are calling
Who triggers the original?
Part_of
Kind_of
How they are shown
Concept of a container
In real life
In programming
Cardinality
Example from the book - and my extension.
Reservation problem
Suggestion on pattern
Java and stubs
State
Probably the modern concept of states, especially as they relate to objects, comes from Sir Isaac. In Principia, Newton describes particle systems. If you know the displacement and momenta of the particles at an instant of time you can describe the entire state of the system. And if you have forces together with initial values of the state variables you can determine the state variables, and every other systems quantity, for all time.
"An impressed force is an action exerted upon a body, in order to change its state, either of reset, or of uniform motion in a right line" Newton, p2.
Newton's first Law of Motion
Every body continues in its state of rest, or of uniform motion in a straight line, unless it is compelled to change that state by forces impressed upon it.
Objects
In order to get the idea of objects, think of an appliance - let's take a CD player.
It has states, constituted by these attributes:
On, off
Volume
battery level
It has public outside operations:
load CD. unload, Play, pause, change volume, load battery, plug in, fast forward.
It also has a set of invisible operations that only the engineers know about:
spinning up to speed, cutting off volume above a certain level, powering down automatically after a certain idle time.
The interface for playing a CD, a video, a DVD is becoming standard - you can imagine that as designers, you just take for granted you will have buttons with certain labels indicating fast forward, pause, stop, rewind.
This is what the interface convention of UML (and Java) can be used for: define a standard interface, and worry about how to implement it later. As a user, you only have to learn the interface once, and it will work on many different objects.
The shower example
what are the dimensions?
pressure
temperature
Then why are the controls normally hot and cold faucets?
Concept of Time - sequences of events
Concept of state - a result of things that change inside an object
Now what is an object again?
Something that responds to requests and changes its state.
Something that makes requests of other objects.
The interfaces of objects are like buttons - they are passive. Objects do things by calling other objects - pushing the buttons of the other objects.
What causes the first push? An actor. Ultimately a human.
What about something with no human interface? It is possible to build systems with no human intervention, such
as:
A sensor. Build a light switch. Then build something that triggers the switch in response to certain conditiions.
Init()
{
while (1) {
outside = read_sunlight()
if outside > THRESHOLD and light.getstate() = OFF
light.switch(ON)
else if outside < THRESHOLD and light.getstate() = ON
light.switch(OFF)
}
Is there a more elegant way to do this? By using a state machine?
Relations between things in the world.
Why model them? Because it often gets to the heart of a system. A customer calls in, saying his DSL service doesn't
work. How is customer linked to line? And to the IP address of his machine? And to the gateway machine? Through
some kind of link.
Relations are the way we link things together - they are associations. There is an entire logic around relations,
going back to Charles Pierce, but the tool we use most in programming to discuss associations is entity-relationship
modeling, which OO modeling has merely subsumed.
Two things can be linked by a property.
In the world we can imagine linking things by physically tying them together with string. Where one goes, the other
goes. Or we link things by throwing them into a basket - some kind of container. Or we bead them together. Or stack
them. The basic link in the world is physical touching, adjoinment. When we can't have adjoinment, we sometimes
go for containment, putting one thing inside another. And in other cases we go with linking, by tying something
together with string. Or, by linking two columns with a horizontal slab. Or drawing a line in the ground to make
the connection.
From these physical links, we go to property-related links. Paint two things the same color, they are somehow linked.
In language, we do similar things. We put words next to eachother. We name something, labeling it with a number
or a mark.
Things are also linked by time.
By sequence. By one thing acting on another thing. By cause effect.
We link things by time when we write a program. We program a sequence, using iterators to repeat things. But these
associations are not the ones we diagram with class diagrams - they are the ones that may show up in sequence diagrams.
In programming languages, there are various ways of forming associations. A lot has to do with having a physical
handle for something, a name that can be passed around so we have a unique object.
One way is to use a pair - contiguity. A collection like a hashtable gives a lookup in one direction. Or a list
you can search through.
Another way is to point from one to the other using a handle. In the world we have serial numbers - which sometimes
we need in programs. Sometimes we get away by just creating an object within another.
is_part_of = parent_object. p.
Understand the designator. Understanding copies of things versus pointers for things.
Understand instantiation. Understand memory as a function of state.
The use of static.
Relations between things. The hypertext link. The back link not so strong
encoding links in database tables.
The use of keys to link two different tables. Find a, b where a.key - b.link_key.
Or, better yet b =a.link
or b=a.getlink()
a.setlink(b)
In Class Problem
A) Diagram an application that allows online book buying
B) Model an inventory system for a campus bookstore
C) Model a cash register for a pizza parlor that does take-out
Problem for next lecture
Redo your reservation system sequence and class diagram. Create a class definition in java for each class. Code
up an add(reservation) piece of code in the appropriate class.
Show a GUI for the system - sketch the screens as in Coad, pages 17-18.
show a set of GUI classes as shown on the bottom of Coad, page 34.
Grading Criteria
Decent diagram, showing only proper associations (no "using") labeled correctly with cardinality and
names.
Adding of the reservation happens in a class functioning as a container.
Java syntax is correct.
Diagram shows an adequate number of classes.
clearness of design
Patterns come from the work of Christopher Alexander. Originally with applications to architecture - Alexander also applied the idea to rugs - here is an analysis using Alexander's ideas.
links to writing on computer patterns
Advanced Topics: Parallelism and Systems Architecture (Big Objects)
Outline
Interfaces
Example - MP3 player
Polymorphism
Signatures and algebras
Parallelism
Restaurant example
Many users to one waiter
Many waiters to one restaurant
Many simultaneous functions.
Queues
Synchronization
Rendezvous
Store-and-Forward
Communicating sequential processes
Databases and the concept of a transaction
A lock and backing off a lock
Deadly embrace
How computers get parallelism
Polling versus event-based
Interrupts - looking every instruction to see if something is coming in
Processes
Context - the state of registers and atttributes in a computation
Memory space associated with all objects - can't go outside
Instruction pointer
Scheduler wakes things things up and stop things - round robin
Cost of call into the kernel, bringing things into memory, etc.
Threads
Light-weight
Many
No memory protection
Java operates threads from within a process
Java has its own scheduler
Great for simulating systems
Great for user interface coding - waiting for events.
Monitor
Circumstance, many using one thing
Many clients
Breaking a computation up into many pieces
Listeners
Tiered architectures
Ways of thinking about the fan in of the world
Example for the web
http server
Normal server
Application server.
Servelets within that
Servlet chaining
Database
Backup and recovery
Java Bean concept
Setting a property from the outside
Inspecting
Linking in a universal way
Visualization of links
Enterprise Java Bean
Communication across machines.
Issue of serializability
Transaction capability
Algebraic Systems
An algebraic system is a set on which we have an equivalence relation, to be able to tell if elements are the same, and some binary operations associated with it. Often there is an identity element. Along with operations and their corresponding inverses. So we have sets, and operations.
Programming languages are mathematical - we have have variables that take on values from sets. Those sets, referred
to as types, may, at the basic level, be integers, characters, real numbers, etc. We have pre-supplied operations
on those sets - such as + on the integers and the reals. The operations of casting in program languages is about
mapping from one set to another, as when we add an integer with a real, the process of converting the integer to
the real, adding, and producing a real number as a result.
But we also define types. In traditional languages, we define records, which are the Cartesian products of the
different domains - in c, struct point {int x, int y} is the Cartesian product x X y. In object languages, we associate
with these data records particular operations - so it is really as if we are creating an algebraic system for the
type. We define a class - in Java
Class Point{private int x;private int y;public void translate(dx, dy){x = x + dx;y = y + dy;}}z = new Point();z.translate(3, 4);
In theoretical terms, Goguen is writer who best models object-oriented approaches - he describes hidden algebras, that include visible sorts (types) to represent data values, and hidden sorts, for internal states. The object has a signature. A signature is a set of types and a set of operators, each with a given input and output type. An algebra is a signature with a function taking types to sets and another taking operators to function.
Switching to the pragmatic, the interfaces of Java provide a way of creating a signature that can be reused in
very different systems. It is a way of allowing polymorphism without confusing this very usual quality with inheritance,
which is useful but in a different way.
design as anticipation
caching - predicting what people will want. Preloading. Replicating.
Patterns
Design at the macro level is similar to design at the micro level.
Design is fractal, as is the implementation process.
So as you code java, you will be in your mind creating sequence diagrams and class diagrams to make sense of what
you are building. If you explictly do it, you will increase your chance of success.
Now, there are books about patterns that you can look at.
Patterns recure in life that are related to the things we have talked about concerning languages. Synchronization
is a big part of the world. Rendezvous are real. So are queues and other kinds of asynchronous processing. Minds
have states, that are altered by the messages sent to the minds. The difference in the real world is the interaction
in open and infinite. In other words, you send a message in anticipation of the way it will be received. And you
know it may be passed onto others, through an infinite interpretation.
Especially as designers, you have an obligation to think through the effects, and try to make it as strong as possible.
Quite often, this means picking an individual you want to impress, and designing the thing to satisfy that person
who you can model inside your mind. As I said before, specifics are very important. It is as if when you design
something really good, you have a chance at your message reaching scale. So label your diagrams, and use the skills
of design on programming java, on creating alternatives in your own career, on imaging the big steps that make
the world more interesting.
Tools
- The best way to learn is to create many designs - Since we are using his book as a text, I suggest Coad's tool - you can download an evaluation copy and try it out. Coad's company is Together. A transcript of a conversation with him gives you some idea of the way he thinks.
- Another good diagramming tool is Visio - you can buy the basic version, and find UML templates for free on the Web.
- Rational makes an OO tool called Rose that is widely used..
Further reading
- A set of object-oriented design links.
- Eckel's site, with free online book texts on patterns and Java
- Donald A. Norman's work on design is good reading.
- The bibliography of works discussed on this page
- A systems bibliography
- A deep thinker on objects: Goguen
- Algebraic Semiotics Also from Goguen, known for his applications of category theory to software.
- BLENDING AND CONCEPTUAL INTEGRATION This is also discussed in Goguen, above
- Robert Rosen's work.
- Mind - Wuppertal- Interesting work from Germany, the product of Nadin.
- Metaphor in Scientific Thinking Page
